veneer peeling

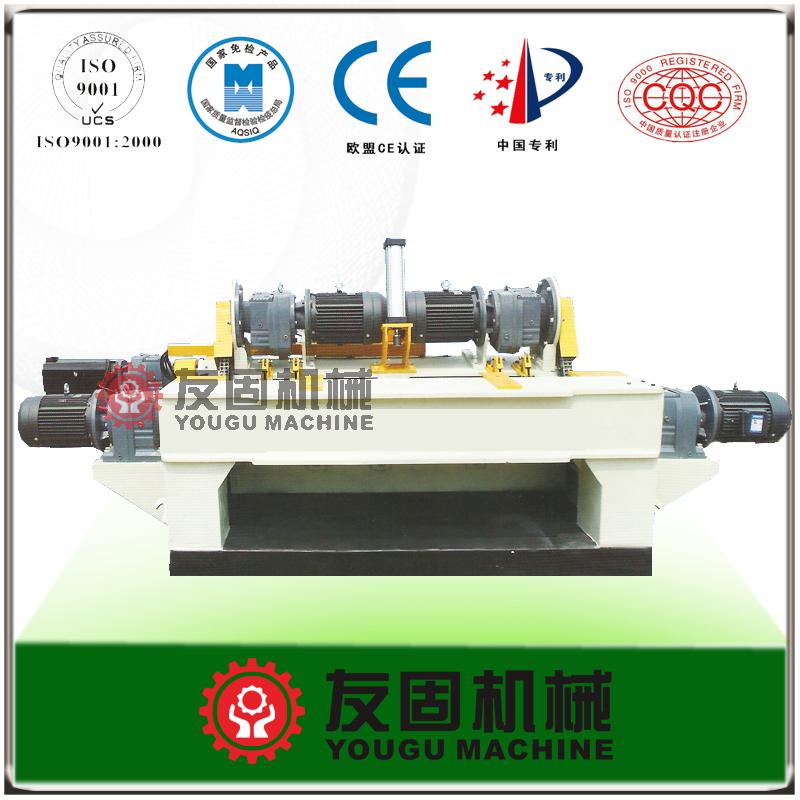

high speed veneer peeling machine

80m/min high speed
veneer peeling cutting in one machine
small waste core roller
high quality
Product description: high speed veneer peeling machine,80m/min high speed,good quality
INQUIRY

1. Highest speed of the veneer peeling machine in China. Peeling speed can be fast as 80m/min.

2. Save power for 30% - 50 %. Normally the running current only the 50% of the rated current.

3. Good quality of the veneer, smooth and evenness, thickness err plus and minus 0.05mm.

4. Stable the roller running speed, reduce the influence of the voltage fluctuate.

5. Automatic speed down when peeling end, reduce the shock of the machine, makes bearings and machine long durable.

6. Advanced control system and core technology.

7. Clipper integrated model, peeling and clipping at same time.

Parameter	Value	Notes
Length of the Roller(mm)	1500
Power of Double Roller(kw)	5.5kw X 2	AC induction motor
Power of Single Roller(kw)	5.5kw X 2	AC induction motor
Power of Screw Feed(kw)	7.5kw	AC Servo induction motor
Power of Rotary Clipper(kw)	1.5kw	AC Servo induction motor
Power of Rubber roller (kw)	1.5kw	AC induction motors
Total Power(Kw)	32.5kw
Roller Reducer	Helical Gear Reductor X 4
Screw Feed Reducer	Helical Gear Reductor X 1
Clipper Reducer	Helical Gear Reductor X 1
Rubber Roller Reducer	Helical Gear Reductor X 1
Veneer output speed(m/min)	30-70 m/min Adjustable
Blade (mm)	150018016
Max opening	450mm
Minimum Log core	28mm / 20mm	Crossed Double Roller :20mm
Thickness(mm)	0.6 – 6.0
Clipper width(mm)	>= 400 mm
Control Unit	Peeling Speed Adjust System Closed loop Servo control	Beijing LEAD Technology
Weight(kg)	5500
